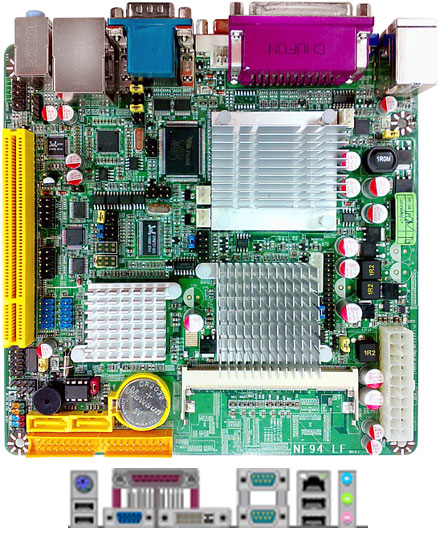

Jetway JNF94-270-LF (with integrated Atom 1.6Ghz CPU, DualChannel (DVI+DSUB), LVDS, HDTV) [FANLESS]

Car-PC Jetway JNF94-270-LF (with integrated Atom 1.6Ghz CPU, DualChannel (DVI+DSUB), LVDS, HDTV) [<b>FANLESS</b>]

Jetway JNF94-270-LF (with integrated Atom 1.6Ghz CPU, DualChannel (DVI+DSUB), LVDS, HDTV) [FANLESS]


45nm Atom CPU ! Fanless ! 2x RS232 ! Dualchannel VGA	Share

In Stock 129.00 EUR
incl. 19% VAT, plus shipping .

Product:

Data sheet | Print view | Add to cart | Compare

Support:

Specifications [EN]

Specifications

CPU	Intel Atom 270 1.6Ghz	RAM	1x SO-DDR-II
Graphic	Intel GMA 950	Audio	Realtek ALC662
Formfactor	ITX (17x17cm)	Base	Intel ITX

Interface

USB	8x USB 2.0	LAN	1x 10/100/1000 Mbit
Firewire	--	Parallel	1x
IDE/SATA	1x IDE, 2x SATA	Serial	4x

Features

TV-Out		Passive cooling
PCI		PCI-Express
Mini-PCI		PCMCIA
IDE		SATA
DVI		CPU changeable
800x480 Resolution		Compact Flash

Compatible enclosures

	CFI A-7879 enclosure (4x 3.5" NAS, 1x 2.5", Hot-Plug, 1x PCI, 200W ) new		Casetronic Travla C137
	Casetronic Travla C138		M200 Enclosure
	M200-LCD Enclosure		M300 Enclosure (1x PCI)
	M300-LCD Enclosure (1x PCI)		M350 Mini-ITX enclosure
	M4-BOX		MHero-L-B enclosure (1x PCI, Slimline ODD)
	MHero-L-R enclosure (1x PCI, Slimline ODD) new		MHero-S-B enclosure new
	MHero-S-R enclosure new		Morex Case 3300
	Morex Case 3310		Morex Case Cubid CB2699 beige
	Morex Case Cubid CB2699 black		Morex Case Cubid CB3677 black
	Morex Case Cubid CB3688 black		VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition]
	VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition] (with TFT power connector)		VoomPC-2 (perfect for M1-/M2-ATX) [Black Edition]
	VoomPC-2 (perfect for M1-/M2-ATX) [Black Edition] (with TFT power connector)

The Jetway JNF94-270-LF is an alternative mainboard for Intel D945GCLF. However it is equipped already with the latest 45nm Atom CPU generation and does not need a fan.

CPU	INTEL®Atom N270 CPU(45nm,512K Cache, 1.60 GHz, 533 MHz FSB)
Chipset	- INTEL®945GSE + ICH7 chipset - Build-in INTEL®GMA 950 Graphics Core(Share Memory Size:64/128/224MB) - Front Side Bus 533MHz
Memory	1 * SO-DIMM Sockets for un-buffered Single Channel DDR2 533/400 SDRAM up to 2 GB
Expansion Slots	- 1x PCI
Storage	- 2 * Serial ATA2 3Gb/s connectors - 1 * Floppy connector - 1 * Ultra DMA 100 / 66 IDE connector
Audio	Realtek ALC662 6-Channel HD Audio CODEC w SPIF in and out
Ethernet LAN	Realtek RTL8111C PCI-E Gigabit Ethernet LAN
USB	Embedded 8 * USB 2.0/1.1
Special Features	Intel Diamond Ville Platform Support ACPI S3 Support CPU Smart FAN Support DC FAN
Rear Panel I / O	- 4 * USB 2.0/1.1 ports - 1 * PS/2 Keyboard connector - 1 * RJ-45 port - 3 * Audio I/O ports ( Line-in, mic and line-out ) - 1 * VGA port - 2 * COM port - 1 * Parallel port - 1 * DVI-D port
Internal I / O	- 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports - NB / Chassis Fan connectors; - 1 * LVDS header - 1 * TV-Out header - 1 * HDTV header - 1 * 20-pin ATX Power connector - 1 * CPM header RS422/485 - 1 * COM header RS232 - 1 * AUDIO header
BIOS	Award 8MB SPI Flash ROM
Form Factor	Mini ITX Form Factor(17cmx17cm)

Scope of supply	- Jetway JNF94-270-LF ITX mainboard
	- Driver CD
	- Manual
	- 1x IDE cable
	- 2x SATA cable
	- 1x HDTV PCI connector plate
	- ATX I/O shield

Customer ratings:

visionarymikej |

| 26.09.2010 |

| See all my comments
This is now our board of choice as it ticks all the boxes. It has dual video outputs, is fanless and has an ATX connector so we can use it with the M3-ATX PSU so its ideal for vehjicle use. Its only a [More]

Tiltz |

| 13.01.2010 |

| See all my comments
Bin mit diesem Bord sehr zufrieden. Es läuft als Musikbox im 24 Stunden Dauerbetrieb und wird ohne Lüfter knapp 45° warm.

Anfangs hatte ich Probleme mit den Realtek Audio Treibern, was nach einem B [More]

sebdehne |

| 05.07.2009 |

| See all my comments
Booting from USB stick didn't work with this motherboard. Using the same USB stick on another PC worked just fine. So I had to use network boot instead to get the OS installed.

btb@gmx.at |

| 07.05.2009 |

| See all my comments
Exzellentes Motherboard! Alle Funktionen laufen wie erwartet, die Treiberinstallation unter XP verlief ohne Probleme. Ich verwende es ohne Lüfter in meinem Car PC mit einem M350 Gehäuse und M3 ATX Net [More]
