Intel D510MO (with integrated Atom 2x 1.66Ghz CPU) [FANLESS]

BACK : Intel ITX Mainboards

PRODUCT IS CURRENTLY NOT AVAILABLE !
Car-PC Intel D510MO (with integrated Atom 2x 1.66Ghz CPU) [<b>FANLESS</b>]
Intel D510MO (with integrated Atom 2x 1.66Ghz CPU) [FANLESS]


Available in 1-3 days 1-3 days 999.00 EUR
incl. 19% VAT, plus shipping .
Specifications
CPU Intel Atom D510 2x1.66Ghz RAM 2x DDR-II 667/800
Graphic Intel GMA 3150 Audio Realtek HD Codec
Formfactor ITX (17x17cm) Base Intel ITX
Interface
USB 8x USB 2.0 LAN 1x 10/100/1000 Mbit
Firewire -- Parallel 1x
IDE/SATA 2x SATA Serial 2x
Features
TV-Out Passive cooling
PCI PCI-Express
Mini-PCI PCMCIA
IDE SATA
DVI CPU changeable
800x480 Resolution Compact Flash
Compatible enclosures
Car-PC Casetronic Travla C137 Casetronic Travla C137 Car-PC Casetronic Travla C138 (not in stock until 15.02.2012) Casetronic Travla C138 (not in stock until 15.02.2012)
Car-PC M300 Enclosure (1x PCI) M300 Enclosure (1x PCI) Car-PC M300-LCD Enclosure (1x PCI) [Delivery time on request] M300-LCD Enclosure (1x PCI) [Delivery time on request]
Car-PC M350 Mini-ITX enclosure M350 Mini-ITX enclosure Car-PC M4-BOX M4-BOX
Car-PC MHero-L-B enclosure (1x PCI, Slimline ODD) MHero-L-B enclosure (1x PCI, Slimline ODD) Car-PC MHero-L-R enclosure (1x PCI, Slimline ODD) *new* MHero-L-R enclosure (1x PCI, Slimline ODD) *new*
Car-PC MHero-S-B enclosure *new* MHero-S-B enclosure *new* Car-PC MHero-S-R enclosure *new* MHero-S-R enclosure *new*
Car-PC Morex Case 3300 Morex Case 3300 Car-PC Morex Case 3310 Morex Case 3310
Car-PC Morex Case 3777 black Morex Case 3777 black Car-PC Morex Case Cubid CB2699 beige Morex Case Cubid CB2699 beige
Car-PC Morex Case Cubid CB2699 black Morex Case Cubid CB2699 black Car-PC Morex Case Cubid CB3677 black Morex Case Cubid CB3677 black
Car-PC Morex Case Cubid CB3688 black Morex Case Cubid CB3688 black Car-PC VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition] VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition]
Car-PC VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition] (<b>with TFT power connector</b>) VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition] (with TFT power connector)


PRODUCT IS CURRENTLY NOT AVAILABLE !

The D410PT as well as the D510MO offer passive cooling and hide on the one hand a -single Core Atom processor (D410) and on the other hand a Dual Core Atom processor (D510 – also used in numerous new netbooks) of the newest generation.

In the area of power consumption (~30 watts) the new mainboards range within the low, classic Intel Atom level. The major advantage of the new mainboard ist he possibility to utilize the 24 pin ATX jack, which makes the use of an additional P4 connector unnecessary.

As with the other mainboard generations, Intel again, focuses on the extension possibilities. Therefore, both mainboards offer a willingly utilized PCI slot, and the D510MO additionally offers a Mini PCIexpress socket and a LPT extension slot. With these possibilities up their sleeve, with minimum effort they offer variable fields of application.

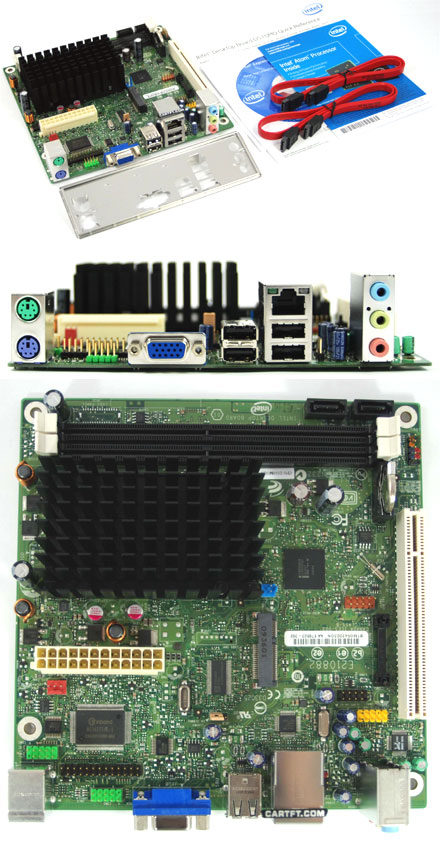

Name D510MO
Form Factor Mini-ITX Mainboard
CPU Intel Atom D510 @ 2x 1.66GHz (Silverthorne 45nm)
Chipset Intel NM10 Express
L2 Cache 2x 512kb
Graphics Intel GMA 3150
Memory 2x DDR2 667/800 RAM (bis zu 4GB)
Power 24 Pin ATX
Connectors (rear) - 1x PS/2
- 1x D-SUB15 (VGA)
- 4x USB 2.0
- 1x LAN 10/100/1000 MBit
- 3x Sound (Line Out, Line In, Microphone)
Audio Realtek High Definition Audio
Connectors (internal) - PCI
- Mini-PCI Express
- Audio
- 4x USB
- 2x SATA
- 2x RS232
- 1x LPT
Included - D510MO Mainboard (with 2x 1.66Ghz Atom CPU)
- I/O ATX rear plate
- 2x SATA cable
- Quickstart-Guide
- Drivers CD


Note : This mainboard does not fit into Voom-2, because of the big heatsink.

Customer ratings:
 info@malstoff.de | | 08.08.2011 | | See all my comments
 klausrosch | | 01.08.2011 | See all my comments
Angenehm lautlos. Erstaunlich leistungsfähiges Board für den niedrigen Stromverbrauch. Leider hat es keinen Speed-Step was bedeutet dass der Stromverbrauch unter Vollast und bei idle sich nur minimal  [More]
 LabDevil | | 01.04.2011 |
Perfektes Board auch für Automatisierungslösungen. Beim Booten über den internen USB SSD-Card Port (Z-U130) sollte unbedingt das BIOS auf die neuste Version aktualisiert werden, da es sonst zu Boot Pr  [More]
 -Frederic- | | 21.10.2010 | | See all my comments
Unglaublich, was man heute für kleiens Geld an Hardware bekommt.
Für das Auto ein absolut außreichendes System: Läuft perfekt, hat mehr als genug Leistung für alle Anwendungen im Auto, passt in nahez  [More]
 microspino | | 04.10.2010 | See all my comments
Good and cheap motherboard. It could have got 5 stars if It had more SATA ports. Only two is a bit limiting.
