Intel D410PT (with integrated Atom 1x 1.66Ghz CPU) [FANLESS]

BACK : Intel ITX Mainboards
Car-PC Intel D410PT (with integrated Atom 1x 1.66Ghz CPU) [<b>FANLESS</b>]
Intel D410PT (with integrated Atom 1x 1.66Ghz CPU) [FANLESS]

Share

In Stock In Stock 64.95 EUR
incl. 19% VAT, plus shipping .
Product: Data sheet | Print view  | Add to cart | Compare
Support: Review [DE] | Review [EN]
Specifications
CPU Intel Atom D410 1x1.66Ghz RAM 2x DDR-II 667/800
Graphic Intel GMA 3150 Audio Realtek HD Codec
Formfactor ITX (17x17cm) Base Intel ITX
Interface
USB 8x USB 2.0 LAN 1x 10/100
Firewire -- Parallel --
IDE/SATA 2x SATA Serial 2x
Features
TV-Out Passive cooling
PCI PCI-Express
Mini-PCI PCMCIA
IDE SATA
DVI CPU changeable
800x480 Resolution Compact Flash
Compatible enclosures
Car-PC CFI A-7879 Gehäuse (4x 3.5" NAS, 1x 2.5", Hot-Plug, 1x PCI, 200W ) *new* CFI A-7879 Gehäuse (4x 3.5" NAS, 1x 2.5", Hot-Plug, 1x PCI, 200W ) *new* Car-PC Casetronic Travla C137 Casetronic Travla C137
Car-PC Casetronic Travla C138 (not in stock until 15.02.2012) Casetronic Travla C138 (not in stock until 15.02.2012) Car-PC M300 Enclosure (1x PCI) M300 Enclosure (1x PCI)
Car-PC M300-LCD Enclosure (1x PCI) [Delivery time on request] M300-LCD Enclosure (1x PCI) [Delivery time on request] Car-PC M350 Mini-ITX enclosure M350 Mini-ITX enclosure
Car-PC M4-BOX M4-BOX Car-PC MHero-L-B enclosure (1x PCI, Slimline ODD) MHero-L-B enclosure (1x PCI, Slimline ODD)
Car-PC MHero-L-R enclosure (1x PCI, Slimline ODD) *new* MHero-L-R enclosure (1x PCI, Slimline ODD) *new* Car-PC MHero-S-B enclosure *new* MHero-S-B enclosure *new*
Car-PC MHero-S-R enclosure *new* MHero-S-R enclosure *new* Car-PC Morex Case 3300 Morex Case 3300
Car-PC Morex Case 3310 Morex Case 3310 Car-PC Morex Case 3777 black Morex Case 3777 black
Car-PC Morex Case Cubid CB2699 beige Morex Case Cubid CB2699 beige Car-PC Morex Case Cubid CB2699 black Morex Case Cubid CB2699 black
Car-PC Morex Case Cubid CB3677 black Morex Case Cubid CB3677 black Car-PC Morex Case Cubid CB3688 black Morex Case Cubid CB3688 black
Car-PC VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition] VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition] Car-PC VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition] (<b>with TFT power connector</b>) VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition] (with TFT power connector)

The D410PT as well as the D510MO offer passive cooling and hide on the one hand a -single Core Atom processor (D410) and on the other hand a Dual Core Atom processor (D510 – also used in numerous new netbooks) of the newest generation.

In the area of power consumption (~30 watts) the new mainboards range within the low, classic Intel Atom level. The major advantage of the new mainboard ist he possibility to utilize the 24 pin ATX jack, which makes the use of an additional P4 connector unnecessary.

As with the other mainboard generations, Intel again, focuses on the extension possibilities. Therefore, both mainboards offer a willingly utilized PCI slot, and the D510MO additionally offers a Mini PCIexpress socket and a LPT extension slot. With these possibilities up their sleeve, with minimum effort they offer variable fields of application.

Name D410PT
Form Factor Mini-ITX Mainboard
CPU Intel Atom D410 @ 1x 1.66GHz (Silverthorne 45nm)
Chipset Intel NM10 Express
L2 Cache 512kb
Graphics Intel GMA 3150
Memory 2x DDR2 667/800 RAM (bis zu 4GB)
Power 24 Pin ATX
Connectors (rear) - 1x PS/2
- 1x D-SUB15 (VGA)
- 4x USB 2.0
- 1x LAN 10/100 MBit
- 3x Sound (Line Out, Line In, Microphone)
Audio Realtek High Definition Audio
Connectors (internal) - PCI
- Audio
- 4x USB
- 2x SATA
- 2x RS232

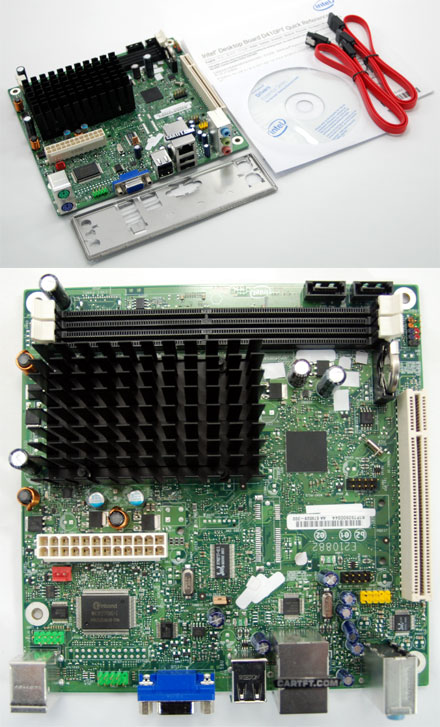

Included - D410PT Mainboard (with 1x 1.66Ghz Atom CPU)
- I/O ATX rear plate
- 2x SATA cable
- Quickstart-Guide
- Drivers CD


Note : This mainboard does not fit into Voom-2, because of the big heatsink.

Customer ratings:
 samedgmbh | | 27.07.2011 | | See all my comments
schönes kleines itx board.nicht für alle anwendung geeignet.schade das es bei den intels keine dvi-anschlus gibt gibt in dem preissegment.

sonst super da lüfterlos und dadurch lautlos...
 francesco289 | | 29.11.2010 | See all my comments
Questa scheda madre è un buon prodotto, se davvero non hanno bisogno di una CPU dual core.
Questo è molto simile a D510MO tranne che non ha una scheda di rete gigabit, ha solo una CPU single core e n  [More]
 mdmiko | | 16.11.2010 | See all my comments
doesn't have an IDE channel... i think intel maybe could leave one. It's a low profile mb, better on home silent pc than automotive. Only for first carputer
 position-control | | 05.11.2010 | | See all my comments
 visionarymikej | | 26.09.2010 | | See all my comments
Great low cost board which does everything most car PCs need.
