CTFDINTFT-1 - 7" InDash VGA Touchscreen USB - fully motorized - Radio AM/FM - Card reader (not in stock until 11.03.2011)
| |
- Radio FM !
- DIN size !
- Card reader !
- Fully motorized !
|
|
1-3 days
999.00 EUR
incl. 19% VAT, plus shipping
.
TFT-Display
Technische Daten
Features
PRODUCT IS CURRENTLY NOT AVAILABLE !
Complete PC VGA Touchscreen TFT solution for the Radio-DIN-slot.
Many features and functions

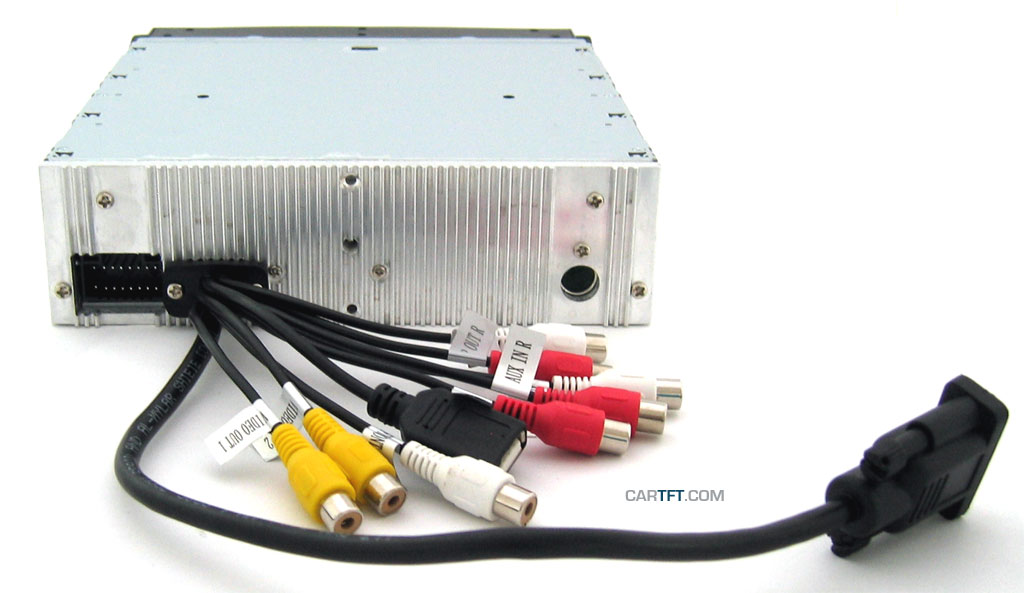

The fully motorized 7“ touchscreen display enables comfortable control. Directly at the front, behind a cover, there is an USB connector, a CompactFlash/SD-card reader and earphone connector. These connectors are "looped through" to the device rear side where you can connect them to your PC.
The integrated AM/FM radio can be used while PC is turned off and the 4x45 amplifier lets you connect your car speakers to the device.
Customized for mobile environment
The display can get wired to vehicle ignition plus line and thereby fade in/out automatically. Besides the touchscreen you can control the display with the included IR remote control unit and the buttons at the front.
Features :
- Motorized 7" Touchscreen display
- AM/FM Radio (useable "Standalone" (PC off))
- Amplifier (4x 45W) for direct connection to car speakers
- USB, CF-/SD-Reader in front
- Fades in/out automatically based on ignition plus
- Infrared remote control unit
- Additional interface buttons in the front
| Screen
size |
Motorized 800 X 480 7"
TFT LCD SHARP |
| Aspect
ratio |
16:9
wide TFT screen |
| Dot
resolution |
2400x480
= 1,152,000 dots |
| Physical
resolution |
800x480
|
| Supported
resolutions |
800x480-1024x768
|
| Color |
RGB
stripe |
| Power
input |
9-16V DC (Car)
24V (Truck) possible with optional adapter |
| Power
consumption |
~10W
|
| Touchscreen |
USB |
| Video |
2x PAL/NTSC RCA Input
1x VGA DSUB-15 Input |
| Audio |
- Earphone output
- 4x Speaker output (Front left/right, Rear lef/right)
- Amplifier 4x45 W
- AM/FM radio |
| Dimensions |
5cm x 17,8cm x 19cm |
| Brightness |
400 nits |
| Features |
-
4x 45W Amplifier
- AM/FM radio (Standalone - Works without connected PC)
- Audio AUX Input
- Touchscreen
- Card reader in front (Compact Flash, SD-Card)
- Earphone-connector in front
- USB connector in front
- OSD (=OnScreenDisplay) controlable by touchscreen
- Motorized display |
| Scope
of supply |
-
CTFDINTFT-1 Single-DIN VGA Touchscreen TFT Display
- VGA connector cable
- USB connector cable
- Plastic front frame
- Metal enclosure for DIN slot
- Touchscreen pencil
- Manual
- Driver CD
- IR remote control
- Power/Misc connector cable
- Earphones |
Also available as version with integrated PC (
CTFDINPC-1)
Notes :
- The fade out angle can be saved : After the display has faded out simply steer the display into the desired position and let the display fade in again. When you let it fade out again then the display will automatically fade out to the last position.
Image gallery :
