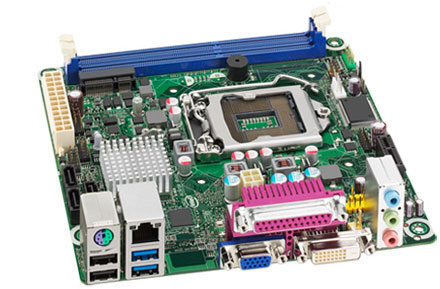

Intel DH61DL (für i3, i5, i7 [Sockel LGA1155], Sandy Bridge) new

Intel DH61DL (für i3, i5, i7 [Sockel LGA1155], Sandy Bridge) *new*


Sandy Bridge !	Share

In Stock 78.95 EUR
incl. 19% VAT, plus shipping .

Product:

Data sheet | Print view | Add to cart | Compare

Support:

Review [DE] |

Review [EN]

Specifications

CPU	Intel Core i3/i5/i7 (LGA1155)	RAM	2 x DDR3 (1066/1333)
Graphic	Intel HD100/HD200	Audio	8-channel Intel High Definition Audio
Formfactor	ITX (17x17cm)	Base	Intel ITX

Interface

USB	8x USB 2.0, 2x USB 3.0	LAN	1x 10/100/1000
Firewire	--	Parallel	1x
IDE/SATA	3x SATA-II	Serial	1x

Features

TV-Out		Passive cooling
PCI		PCI-Express
Mini-PCI		PCMCIA
IDE		SATA
DVI		CPU changeable
800x480 Resolution		Compact Flash

Compatible enclosures

	CFI A-7879 enclosure (4x 3.5" NAS, 1x 2.5", Hot-Plug, 1x PCI, 200W ) new		Casetronic Travla C137
	Casetronic Travla C138		M350 Mini-ITX enclosure
	M4-BOX		MHero-L-B enclosure (1x PCI, Slimline ODD)
	MHero-L-R enclosure (1x PCI, Slimline ODD) new		MHero-S-B enclosure new
	MHero-S-R enclosure new		Morex Case Cubid CB2699 beige
	Morex Case Cubid CB2699 black		Morex Case Cubid CB3677 black
	Morex Case Cubid CB3688 black		VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition]
	VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition] (with TFT power connector)

Enjoy great multitasking performance in a small form factor board with the Intel® Desktop Board DH61DL. It is designed to run with the 2nd generation Intel® Core™ processor family in the LGA1155 socket. This mini-ITX board supports the latest features including USB 3.0, and dual display capabilities making it an excellent choice for an entry-level mini-ITX based system.

This board offers premium features such as Intel® High Definition Audio (Intel® HD Audio) with 5.1 surround sound and multi-streaming capability and an integrated Intel® PRO 10/100/1000 Network Connection in a low-power design.

The Intel Desktop Board DH61DL is Microsoft Windows* 7 Ultimate and Windows Vista* Ultimate WHQL certified.

Name	DH61DL
Form Factor	Mini-ITX Mainboard
CPU	Intel Core i3/i5/i7 CPU Series Socket LGA1155
Chipset	Intel H61 Express Chipsatz (B3)
Graphics	Intel HD100/HD200
Memory	2 x DDR3 DIMM, 1066/1333 Mhz, bis zu 8GB
Power	24 Pin ATX
Connectors (rear)	2x USB 2.0 2 x USB 3.0 1 x Audio 1 x 10/100/1000 Mb/s Ethernet (Intel 82579V) 1 x DVI-D 1 x DSUB-15 VGA 1x PS/2
SATA	3x SATA 3GB/s
Audio	6-channel Intel High Definition (Intel HD Audio)
Connectors (internal)	6x USB 2.0 3x SATA (3GB/s) 1 x LPT 1 x RS232 1 x PCIexpress x16 1 x Mini-PCIe (Half length)
Included	- DH61DL Mainboard - I/O ATX rear plate - 2x SATA cable - Quickstart-Guide - Drivers CD

Customer ratings:

arconnen |

| 08.09.2011 |

| See all my comments
very nice product

maxwen |

| 12.07.2011 |

| See all my comments
Replacement for Atom D510MO Board in my car-pc. Used together with a Pentium G620T cpu. If you need more then 2 USB 2.0 ports you need to buy some for the internal USB connectors (3x).
