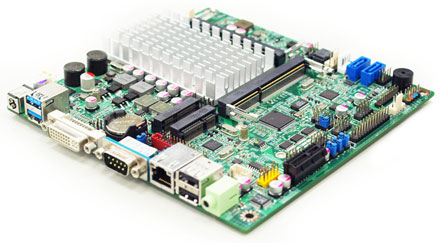

Jetway JNF9M-2930 (Intel BayTrail)

Jetway JNF9M-2930 (Intel BayTrail)

  • Intel Celeron Processor BayTrail-M N2910/N2920
  • 2 *DDR3L 1066MHz Single CH SO-DIMM up to 8GB
  • Support 2 * Serial ATAII (3Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • Integrated 1 * 24-bits Dual CH LVDS
  • Supports 1 * Realtek RT8111G Gigabit LAN
  • Support CPU Smart FAN
  • Support Watch dog Technology
  • Thin Mini-ITX Form Factor(17cm x 17cm)
  • Slim & Fanless design, within 2cm height




Share

298.00 EUR
incl. 19% VAT, plus shipping
In Stock (4 pcs)

Add to cart
CPU Intel Celeron Processor BayTrail-M N2910/N2920
Chipset INTEL® Bay Trail-M SoC  Processor
Memory 2 *DDR3L 1333/1066MHz Single CH SO-DIMM up to 8GB
Expansion Slots 1 * PCI-E x 1 slot 1 * MINI PCI-E
Storage 2 * Serial ATAII (3Gb/s) connectors (One share with mSATA) 1 * mSATA socket (Share with one SATA port)
Audio Realtek ALC662 2-Channel HD Audio
Ethernet LAN 1 * RTL8111G PCI-E Gigabit LAN
LVDS 1 * 24-bits Dual CH LVDS connector
USB Embedded 3 * USB 3.0 + 5 * USB 2.0/1.1
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O 1 * USB 3.0 port 3 * USB 2.0/1.1 ports 1 * RJ-45 port 1 * DVI-I port 1 * COM port (Support RS232/422/485) 1 * Line-out connector 1 * 4-pin 9V~36V DC in jack
Internal I / O 1 * USB 3.0 header for 2 USB 3.0 ports 1 * USB 2.0/1.1 header for 2 USB 2.0 ports 1 * KB/MS header CPU smart Fan / System Fan headers 1 * LVDS header & 1 * GPIO header & 1 Parallel header 3 * COM headers & 4 * COM ports 5V/12V Selectable headers 1 * AUDIO AMP & 1 * AUDIO header & 1 * SPDIF header 1 * chassis intrusion header & 1 * AT mode selectable header
BIOS AMI 64MB SMT Flash ROM
Form Factor Thin Mini ITX Form Factor (170mm x 170mm)
Functional Panel PC, ATM, Security, KIOSK, POS, General Application, Transportation
Certificate CE, FCC, RoHS
Temperature Operating within 0~60 centigrade Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
