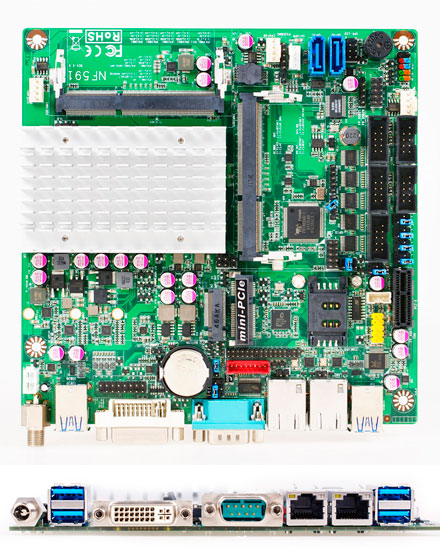

Jetway NF591-3160 (Intel Braswell Celeron)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF591-3160 (Intel Braswell Celeron)

  • Intel® Braswell Celeron® Processor N3160 1.6G Quad Core
  • Support DDR3L 1600MHz Dual Channel,
  • 2 * SO-DIMMs, Max. up to 8GB
  • Support VGA, DVI-D, LVDS 3 Independent Display
  • Realtek RTL8111G PCIe GbE, 2 * RJ45 ports
  • Support 2 * Serial ATAIII (6Gb/s)
  • 1 * External COM ( RS232/422/485 ),
  • 5 * Internal COM ( RS232 )
  • COM ports with 5V/12V power selectable
  • 4 * External USB3.0 & 3 * Internal USB1.1/2.0
  • 1 * PCIe x1 slot, 1 * Full size mPCIe
  • 1 * M.2 ( SATA interface only, M key-2242/2260/2280 )
  • 1 * SIM Card Holder
  • 1 * Internal 4 Channel Audio ( Line Out & MIC )
  • Lockable DC [more]

    Share

RAM :

SSD (mSATA):

SSD (M.2 NVME):

Build/Install:

  • Intel® Braswell Celeron® Processor N3160 1.6G Quad Core
  • Support DDR3L 1600MHz Dual Channel,
  • 2 * SO-DIMMs, Max. up to 8GB
  • Support VGA, DVI-D, LVDS 3 Independent Display
  • Realtek RTL8111G PCIe GbE, 2 * RJ45 ports
  • Support 2 * Serial ATAIII (6Gb/s)
  • 1 * External COM ( RS232/422/485 ),
  • 5 * Internal COM ( RS232 )
  • COM ports with 5V/12V power selectable
  • 4 * External USB3.0 & 3 * Internal USB1.1/2.0
  • 1 * PCIe x1 slot, 1 * Full size mPCIe
  • 1 * M.2 ( SATA interface only, M key-2242/2260/2280 )
  • 1 * SIM Card Holder
  • 1 * Internal 4 Channel Audio ( Line Out & MIC )
  • Lockable DC input over/under voltage protection
  • 3 * 4pin FAN type auto detection
  • Thin Mini-ITX Form Factor (170mm x 170mm)

Product Specifications
 Form Factor
 Dimensions  - Thin Mini-ITX (170 x 170mm)
 Processor System
 CPU  - Intel® Braswell Celeron® Processor N3160, TDP : 6W (N3150 before December 2016)
 Core Number  - Quad Core
 Speed  - Processor Base Frequency : 1.6GHz, Burst Frequency : 2.08GHz
 L2 Cache  - 2MB
 Chipset  - SoC
 BIOS  - AMI 64Mb Flash ROM
 Expansion Slot
 PCI  - 0
 PCIe  - 1 ( x1 slot )
 Memory
 Technology  - Dual Channel DDR3L 1600 MHz SDRAM
 Max.  - 8GB
 Socket  - 2 * SO-DIMM
 Graphics
 Controller / VRAM  - Intel® HD Graphics / Shared system memory
 VGA  - Yes ( Max. Resolution : 1920X1200@60Hz )
 DVI-D  - Yes ( DVI-D, Max. Resolution : 1920X1200@60Hz )
 HDMI  - No
 DisplayPort  - No
 eDP  - No
 LVDS  - Yes ( 24-bits Dual Channel, Max. Resolution : 1920X1080@60Hz )
 MultiDisplay  - Yes ( 3 Independent Display )
 Ethernet
 Interface  - 10/100/1000 Mbps
 Controller  - PCIe GbE LAN : Realtek RTL8111G
 Connector  - 2 * RJ 45
 Audio
 CODEC  - HD Audio : Realtek ALC662VD
 Channel  - 4 Channel
 SATA
 Max. Data Transfer Rate  - 2 * SATAIII (6.0Gb/s)
 RAID Support  - No
 Rear I/O
 VGA  - 0  SPDIF Output  - 0
 DVI-D  - 1  Serial  - 1 ( RS232/422/485
 HDMI  - 0 　  with 5V/12V selectable header )
 DisplayPort  - 0  Parallel  - 0
 Ethernet  - 2  eSATA  - 0
 USB  - 4 ( USB 3.0 )  PS2  - 0
 Audio  - 0  DC-Input  - 1 ( 12V Lockable DC-In PWR Jack )
 Internal Connector
 USB  - 3 ( USB1.1/2.0 )  SIM Card Holder  - 1
 PS/2  - 1  CFast Card Socket  - 0
 LVDS /  - 1 ( 24 bits Dual Channel ) /  CF Card Socket  - 0
 Inverter    1  CIR  - 0
 VGA  - 1  GPIO 8-bit  - 1 ( 4in/4 out )
 Serial  - 5  Chassis intrusion  - 1
　  ( RS-232 with 5V/12V selectable header )  Audio Header  - 1 ( Line Out & MIC )
 Parallel  - 0  SPDIF  - 0
 SATA  - 2 ( SATAIII 6.0Gb/s )  HDMI-SPDIF  - 0
 mPCIe  - 1 ( Full size )  SMBUS/ I2C  - 1 ( I2C )
　 　  AT mode jumper  - 1
 mSATA  - 0  Jetway Daughter  - 0
 M.2  - 1 ( SATA interface only,  Audio Amplifier Header  - 1 ( 3W Amp )
　  M key-2242/2260/2280, shared with SATA2 )
Other
 Power  - 12V Lockable DC-In PWR Jack, Supports AT/ATX Mode
 Watchdog Timer  - Programmable 1 ~ 255 sec/min
 Certifications  - CE, FCC, RoHS, REACH
 Temperature  - Operating : 0℃ ~ 60℃, Storage : -20℃ ~ 85℃
