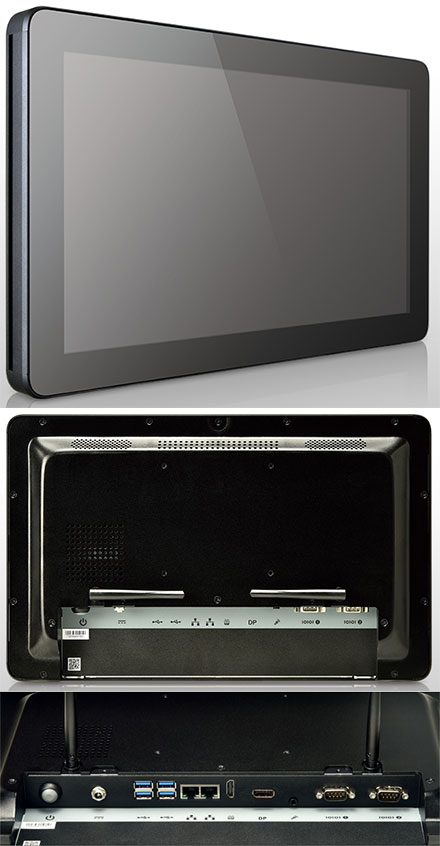

Mitac D151-11KS [Intel i3-7100U] 15.6" Panel PC (1366x768, Multi-Touchscreen, PD11KS 3.5-SBC Kaby Lake, IP65 Front, Fanless)

Mitac D151-11KS [Intel i3-7100U] 15.6" Panel PC (1366x768, Multi-Touchscreen, PD11KS 3.5-SBC Kaby Lake, IP65 Front, Fanless)
  • 1366x768 Multi-Touchscreen !
  • Fanless ! IP65 Front !
  • Intel Kaby Lake CPU !
  • 2x LAN, 2x COM !

D151 series is a 15.6" ultra-thin wide-screen fanless Panel PC featuring Intel Kaby Lake ULV Core-i CPU. The distinct aluminum extrusion frame with matte black or silver finish gives the system an understated luxury and elegant look. The series also featuring a bright TFT-LCD with LED backlight display and true flat 10-point projective capacitive multi-touch front panel that's IP65 compliant, along with optional universal snap-in peripherals (MSR, Smart card reader, NFC/ RFID reader, barcode scanner, camera), making it perfect for diversified self-service and interactive signage markets including retail, hospitality, gaming, corporate, healthcare and light industrial applications.

[more]

Share

1449.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

D151 series is a 15.6" ultra-thin wide-screen fanless Panel PC featuring Intel Kaby Lake ULV Core-i CPU. The distinct aluminum extrusion frame with matte black or silver finish gives the system an understated luxury and elegant look. The series also featuring a bright TFT-LCD with LED backlight display and true flat 10-point projective capacitive multi-touch front panel that's IP65 compliant, along with optional universal snap-in peripherals (MSR, Smart card reader, NFC/ RFID reader, barcode scanner, camera), making it perfect for diversified self-service and interactive signage markets including retail, hospitality, gaming, corporate, healthcare and light industrial applications.

Model Name D151-11KS
Motherboard PD11KS
Processor Intel Kaby Lake-U i3-7100U with integrated graphics (Compatible with Skylake 3955U / i3-6100U / i5-6300U / i7-6600U and Kabylake 3965U / i5-7300U / i7-7600U)
System Memory 2 x DDR4 SO-DIMM, support up to 32GB
Processor Graphic Intel® HD Graphics 620 (Graphics Burst Frequency 1.10GHz)
Touch Display
LCD Size 15.6" TFT LCD with LED Backlight 50000 lifetime
Brightness 500nits
Resolution 1366 x 768
Viewing Angle 170°/160°
Touch Screen True-flat 10 points projective capacitive touch
Storage
HDD/SSD 1 x 2.5 internal HDD/SSD bay
Expansion
Extension slots M.2 (2230) : 1 x M.2 E key for wireless network
MiniPCIe : 1 x full length mPCIe supporting mSATA
I/O Ports
DC Jack 1 (8V to 24V wide-range voltage input)
USB3.0 4
GigaLAN (10/100/1000) 2
Display-Port (support 4K 3840x2160) 1
Audio jack 1 x combo jack w/mic-in and line-out
HDMI-out 1
Serial Port 1 x RS-232, 1 x RS-232/422/485
Thermal Solution
Thermal Solution Fanless
Audio
Stereo Speaker 2W x 2
Power
Power Supply 65W/19V
Certification
EMC & Safety CE/FCC Class A
Environment
Operating Temperature 0°C ~ 40°C (32°F~104°F)
Storage Temperature -20°C ~ 60°C(-4°F~140°F)
Relative Humidity 10%~95% @40°C non-condensing
Front Panel Protection IP65 Compliant
Dimension 400 x 250 x 44 (mm)
Weight 4.8kg (10.58 lb)
Mounting 100mm x 100mm VESA
Operating System win10, linux support by request
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Specifications Download (PDF)
