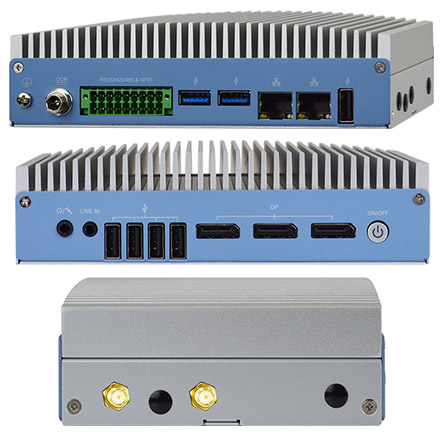

Jetway HB368F21-6412-W (Intel Elkhart Lake J6412) [3x DisplayPort, 2x LAN]

Jetway HB368F21-6412-W (Intel Elkhart Lake J6412) [3x DisplayPort, 2x LAN]
  • Intel Elkhart Lake SoC !
  • HB368F21 !



  • Intel Elkhart Lake SoC Processor
  • 1* DDR4 3200MHz SO-DIMM up to 32GB
  • 2* USB3.1 (Gen.2), 4* USB2.0, 2* RJ45,1* Audio (MIC + Line-out), 1* Line-IN, 3* DP, 2* COM, 1* GPIO
  • 160.2*106*43.5 mm
  • DC12V_60W Adapter
  • Support TPM2.0 (option)


Share

449.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
Model – HB368F21-6412-W (non-WiFi)
– HB368F21I-6412-W (WiFi)
CPU/Chipset – Intel® Elkhart Lake SoC Processor ( J6412 , TDP 10W)
BIOS – AMI Flash ROM
Memory – 1* DDR4 3200MHz SO-DIMM up to 32GB
Network – 2* Realtek RTL8119I GbE
Graphics – Intel® HD Graphics, shared memory
– 3* DP (Max Resolution: 4096×2160@60Hz)
– Support Triple Displays
Storage – 1* M.2 M-key (2242/2280, PCIe Gen.3 x2/SATA interface) support NVME
– 32GB eMMC onboard (option)
Expansion – 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface)
– 1* M.2 B-key (3042,USB3.0 interface)
Rear Panel I/O – 2* RJ45
– 2* USB3.1(Gen.2)
– 1* USB2.0
– 1* 8 bit GPIO (Phoenix Connector 2*9 PIN)
– 2* RS232/422/485 (Phoenix Connector 2*9 PIN)
– 1* DC in (Lockable)
Front Panel I/O – 1* Power button + Power LED
– 4* USB2.0
– 1* Audio(Line out+MIC)
– 1* Line in
– 3* DP
Internal Connector – SIM Card Holder
Power Source – Adapter : AC 90~240V input / DC12V_60W output
– MB : DC12~36V input
Compliance – CE, FCC, LVD, RoHS, ErP Ready
Dimensions – System: 160.2 (W) x 106 (D) x 43.5 (H) mm
– Net Weight: 1.01KG: Gross Weight: 1.52KG
Temperature – Operating Temperature: -20 ~ 80° C (Under the condition of using M.2 interface SSD)
– Storage Temperature: -20 ~ 60° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 11, Linux
