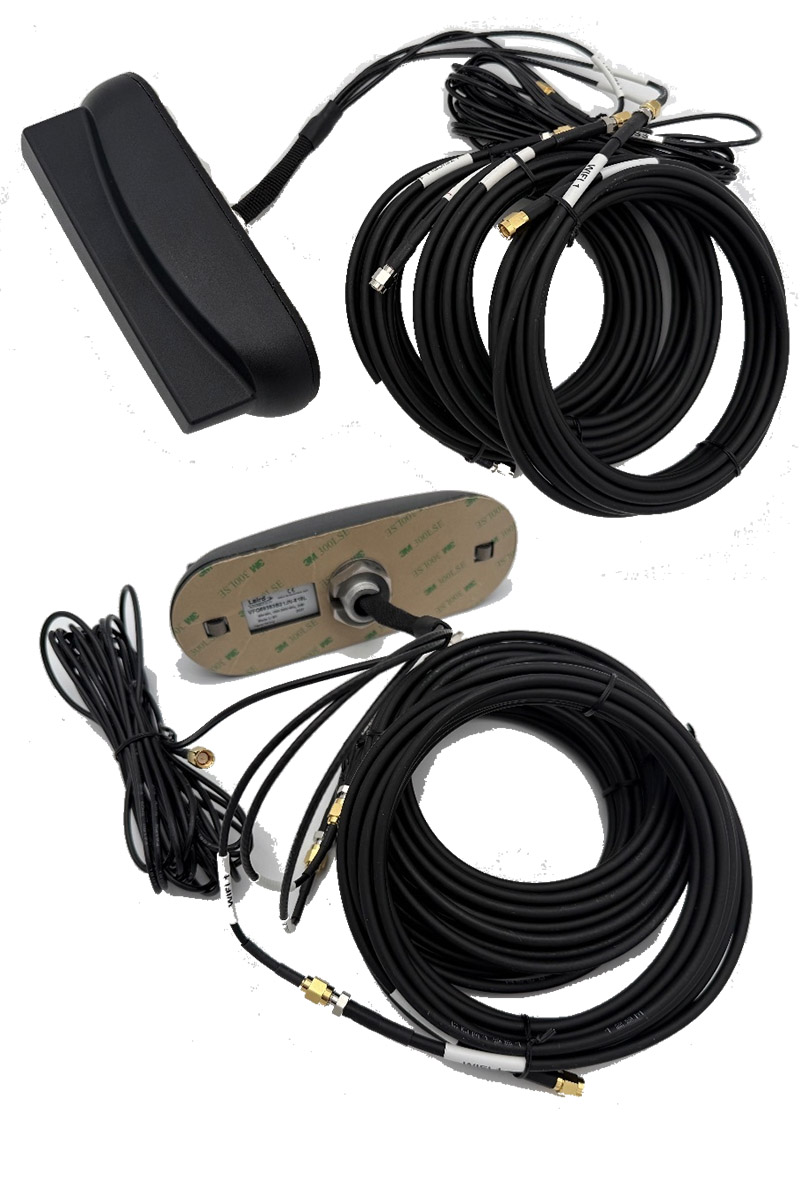

TE Connectivity VFQ69383B21JN-518L (vehicle roof antenna, 3x SMA male 5m, 3G/4G/5G/ISM/CBRS, WIFI/BT)

TE Connectivity VFQ69383B21JN-518L (vehicle roof antenna, 3x SMA male 5m, 3G/4G/5G/ISM/CBRS, WIFI/BT)
  • GPS/GLONASS/GSM/4G/5G !
  • WLAN / Bluetooth !
  • Active antenna !
  • SMA connectors !

The Gar VFQ69383x21JN VFQ69383B21JN-518L multiport/multiband antenna provides an excellent solution for public safety, transportation, and aftermarket fleet applications. Configured for two-port operation over the 3G/4G/5G/ISM/CBRS bands and oneport operation over the low//high frequency Wi-Fi bands. An additional fourth port provides an active antenna for enabling GNSS global navigation services.

FEATURES AND BENEFITS
• One single-hole mount/fixing reduces vehicle damage and the cost of installation
• Attractive IP67 low profile aerodynamic housing
• Multiband/multiport operation with GNSS navigation
• Operates well on a
[more]

Share

169.00 EUR
incl. 19% VAT, plus shipping
In Stock (10 pcs)

Add to cart

The Gar VFQ69383x21JN VFQ69383B21JN-518L multiport/multiband antenna provides an excellent solution for public safety, transportation, and aftermarket fleet applications. Configured for two-port operation over the 3G/4G/5G/ISM/CBRS bands and oneport operation over the low//high frequency Wi-Fi bands. An additional fourth port provides an active antenna for enabling GNSS global navigation services.

FEATURES AND BENEFITS
• One single-hole mount/fixing reduces vehicle damage and the cost of installation
• Attractive IP67 low profile aerodynamic housing
• Multiband/multiport operation with GNSS navigation
• Operates well on a ground plane and without a ground plane.

APPLICATIONS
• FirstNet/Public safety
• Transportation
• Aftermarket fleet
• 5G-ready
• Rugged LTE gateways
• Others

Antennen Model VFP69383B22JN-518J
Port Configuration 2x 3G/4G/5G/ISM/CBRS, 2x WIFI
Watchdog Watchdog Timer Support, Offer 1 – 255 Step
Operating Frequency (Mhz) 698-806 / 824-894 / 880-960 / 1690-3800 / 2400-2500 / 4900-6000
Azimuth Plane 3db Beamwidth 360° Omnidirectional
Nominal IMpedance (ohms) 50
Polarization Linear Vertical
Max Power - Ambient 25°C 10 Watts
  Mechanical Secifications
Dimensions 179x63x48 mm / 0,63 kg
CableType LMR 100, Black
Mounting P-Mount
Baseplate. Aluminium
  Enviremental Specifications
Operating Enviroment Outdoor Vehicle / IP67
Temperatures Operating Temperature: -30 to +70°C Storage Temperature: -40 to +85°C
Material Substance Compliance RoHS
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
