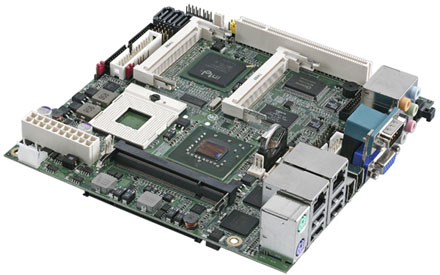

Commell LV-679D (for Core Duo/Core Single) (without I/O shield) [RECERTIFIED, 1 yr. warranty]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Commell LV-679D (for Core Duo/Core Single) (without I/O shield) [<b>RECERTIFIED, 1 yr. warranty</b>]

Fully working, recertified mainboard.
1 year warranty

This board can be operated from a DC-power source (like car battery, input voltage range : 8-30V) or from a ATX power supply.

- CPU: Intel® Core™ 2 Duo processor ( Merom ) @ 800 MHz FSB
- Memory: 2 x 200-pin DDR2 533/667MHz up to 3.0 GB.
- Chipset: Intel® GME965 and ICH8M.
- VGA Interface: built-in Intel® extreme GMA X3100 Technology.
- LVDS interface: Onboard 24-bit Dual channel LVDS connector.
- DVI Interface: Onboard 26-pin DVI interface
- Enhanced IDE: One UltraATA33 IDE interface supports up to 2 ATAPI Devices.
- Serial ATA: 3 x Seri
[more]

Share

CPU Intel Core Duo @ 800 FSB
Graphics Intel GMA X3100
Formfactor ITX (17x17cm)
RAM 2x DDR-II 533/667
Audio Realtek ALC888 HD Audio
Base Intel ITX
USB 8x USB 2.0
Firewire 2x
IDE/SATA 1x IDE, 3x SATA
LAN 2x 10/100/1000
Parallel 1x
Serial 1x
yes TV-Out
yes PCI
yes Mini-PCI
yes IDE
yes DVI
yes 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash

Fully working, recertified mainboard.
1 year warranty

This board can be operated from a DC-power source (like car battery, input voltage range : 8-30V) or from a ATX power supply.

- CPU: Intel® Core™ 2 Duo processor ( Merom ) @ 800 MHz FSB
- Memory: 2 x 200-pin DDR2 533/667MHz up to 3.0 GB.
- Chipset: Intel® GME965 and ICH8M.
- VGA Interface: built-in Intel® extreme GMA X3100 Technology.
- LVDS interface: Onboard 24-bit Dual channel LVDS connector.
- DVI Interface: Onboard 26-pin DVI interface
- Enhanced IDE: One UltraATA33 IDE interface supports up to 2 ATAPI Devices.
- Serial ATA: 3 x Serial ATA interface with 300 MB/s transfer rate.
- LAN Interface: 2 x Intel® 82573L Gigabit Ethernet .
- Audio: Realtek ALC888 HD Audio.
- Solid State Disk: IDE1 supports 44-pin DiskOnModule with +5V power supply.
- IEEE 1394: 2 x IEEE1394 port.
- GPIO interface: Onobard 8-bit Digital I/O interface.
- Extended interface: 2 x Mini-PCI socket and 1 x PCI slot.
- Rear I/O ports: PS/2 Keyboard/Mouse, VGA, LAN, USB 2.0, Audio, SPDIF, IEEE 1394 COM.


Scope of supply :
- LV679D2 mainboard (without I/O shield)
- Slim CPU Alu cooler
- IDE-cable (40 to 44 pin)
- Floppy-cable (26 pin)
- COM/LPT-port-cable-kit
- 2x SATA cable
- S-Video to YPbPr Adapter
- S-Video to TV-Out Adapter
- DVI Bracket
- USB Bracket
- DC Power Socket + ATX Power connector adapter




NOTE : Can not be used with M2-ATX and M2-ATX-HV and M3-ATX ! (But eg. with M4-ATX, PicoPSU-90, PicoPSU-120, PicoPSU-80-WI,PicoPSU-120-WI)

Form Factor
Mini-ITX Motherboard (170 x 170 mm)
CPU
Intel® Core™ 2 Duo (Merom) processor @ 800 MHz FSB
Memory
2 x DDR2 533/667 MHz SODIMM up to 3.0 GB
Chipset
Intel® GME965 & ICH8M
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Watchdog Timer
Generates a system reset internal timer for 1sec/min ~ 255 sec/min
Power Management
ACPI 1.0 compliant, supports power saving mode
PCI Enhanced IDE
1 x Ultra ATA/33 IDE channel up to 2 ATAPI devices
VGA Interface
Intel® GME965 integrated GMA (Graphic Media Accelerator) X3100 Technology
Video Memory
Up to 384 MB shared with system memory
Serial ATA Interface
3 x Serial ATA II Interface with 300 MB/s transfer rate.
Audio Interface
Realtek ALC888 HD Audio
LAN Interface
2 x Intel® 82573L Gigabit Ethernet
Solid State Disk
IDE1 supports 44-pin DiskOnModule +5V power supply
GPIO Interface
Onboard programmable 8-bit digital I/O interface
Extend Interface 1 x PCI slot & 2 x Min-PCI socket
External I/O Port
2 x RJ45 LAN ports,
1 x DB15 VGA port,
1 x PS/2 Keyboard / Mouse ports,
2 x IEEE 1394 ports,
4 x USB 2.0 ports,
Audio,
SPDIF,
1 x COM
Internal I/O Port 1 x RS232/422/485,
1 x silm FDD,
1 x IrDA ,
1 x LPT,
4 x USB 2.0,
1 x 8-bit GPIO,
1 x Audio,
1 x CDIN
LVDS and LCD inverter connector,
1x DVI,
1 x TV-out
Power Requirement
Standard 20-pin ATX power supply or
9V ~ 24V full range DC input (8 ~ 30V is operative)
Board Dimension 170mm x 170 mm (L x W)
Data sheet Download (PDF)
Data sheet Print view
Manual [EN] Download (PDF)
Review [DE] Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 5 ratings
3 von 5 Sternen from hks gmbh am 27.02.2009 |

Wir sind sehr zufrieden mit der unkomplzierten Auftragsabwicklung und der schnellen Lieferung.
Auch der anschliessende technische Support hat uns gut weitergeholfen. Vielen Dank!

3 von 5 Sternen from fmorbitzer am 08.07.2008 |

Unter XP keinerlei Probleme, super schnell auch beim Hoch/Runterfahren. Genügend Leistungsreserven für nahezu alle Aufgaben, die man sich vorstellen kann. Ich bin begeistert!

5 von 5 Sternen from wanyCartft am 15.04.2008 | | See all my comments

This new board work fine.
We have tested the board with the following configuration:
2x 1Go of DDR2 533
The wireless LAN mini PCI with antenna
Hard disk PATA 100 of 80Go
CPU Core2 Duo T7100 -1.8GHz
It is a very powerful configuration. We are completely satisfied. Very interesting for the single power input 8-24V.
FYI : the motherboard is not compatible with some old CRT screens, with two of our, the screen was blank.

5 von 5 Sternen from YannickDM am 02.04.2008 | | See all my comments

This board is the best! It is very expandable. With the 2 mini-PCI slot you can get all the stuff you want! I've install a T7500, no problems with that! Even the cooler is good enough!Recommended!

3 von 5 Sternen from digicom am 30.12.2007 | | See all my comments

Schda veramente performante! completa di tutto con discrete possibilità di espansione ! supporta tutti i nuovi processori intel duo 2 con bus a 800 mhz! arriva completa di tutti i cavi necessari all'installazione l'unica pecca è il costo non certo economico, ma ne vale la pena specialmente se si cerca un sistema potente!
