CTFHD800 - HDMI 8" TFT - Touchscreen USB - PAL/NTSC - Autodimmer - IR Remote - Audio (1024x600, 500 nits) [LED]

CTFHD800 - HDMI 8" TFT - Touchscreen USB - PAL/NTSC - Autodimmer - IR Remote - Audio  <b>(1024x600, 500 nits) [LED]</b>
3D 360° View
  • High brightness !
  • Slim design !
  • Auto-PowerOn !
  • HDMI !

LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

With maximum depth of 29mm the new slim CTFHD800-L will convince you. Its the ideal display- and control unit for your Laptop, CarPC or HTPC. With help of the touchscreen functionality, the PC can be con
[more]

Share

349.00 EUR
incl. 19% VAT, plus shipping
In Stock (10 pcs)

Add to cart
Compare
Front
Rear
Side
LCD Size 8"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1200
Native resolution 1024x600
Dot resolution 3072x600
Brightness 500
VGA Input HDMI
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12V-24DC
Power Consumption 9W
Case size 220 x 135 x 29 mm
Visible area 172 x 104 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
yes Headrest mount
yes TS pencil
no Earphone
no Adjustable video aspect
yes Mirrorable video
yes Reverse camera input

LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

With maximum depth of 29mm the new slim CTFHD800-L will convince you. Its the ideal display- and control unit for your Laptop, CarPC or HTPC. With help of the touchscreen functionality, the PC can be controlled comfortable with your fingers. The briliant HDMI-display enables a maximum readability and sharpness.

The device has integrated Stereo-speakers and an automatically switched rear camera input. An AC-Home adapter and a cigarette lighter adapter is included with the package, as well as an IR-remote control unit and the extralong (2,5 meters) All-In-One connector cable.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..





Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz

Spezifikationen
Bildgröße 8" digital
Bildverhältnis 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 1024x600
Supported Resolutions 640x480-1920x1200 (u.a. auch 1366x768)
Color configuration RGB stripe
Power input DC 12/24V
Power consumption max. 9W
Video system 3x Video inputs (PAL/NTSC)
1x HDMI input
Brightness 500 cd/m²
Contrast 300:1
Vibration IEC68-2-6
Operating Temperature -30° bis 85°C
Dimensions Display Case : 220x135x29 mm
Display : 174 x 105 mm
Kopfstützeneinbauschale : 238x153x30 mm
Video input signal 1.0Vp-p, composite video
Features Full function OSD control (englisch)
Eingebaute Stereo-Lautsprecher
Auto Power On/Off
Autodimmer
Automatische Umschaltung auf Rückfahrkamera (durch Signalerkennung auf AV3)
LED-Hintergrundbeleuchtung

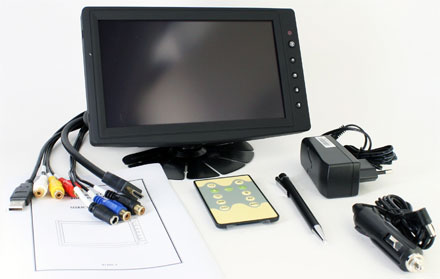

Lieferumfang - 8" HDMI Touchscreen TFT mit Video/Audio-Untersützung
- Infrarot Fernbedienung
- Dash Monitor-Halterung
- HDMI/Video/Audio/Touchscreen/Strom-Anschlusskabel (all-in-one !) 2,5 m Länge
- Netzteil f. Anschluss an 230V Steckdose
- Zigarettenanzünder-Adapter
- Touchscreen Treiber-CD
- Touchscreen Bedienstift
- Handbuch
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
